What is BPMN? The 20% of the Spec You'll Actually Use
BPMN — Business Process Model and Notation — is the OMG standard for diagramming business processes. It defines a visual language (rectangles for tasks, diamonds for gateways, circles for events)an XML serialisation. Modern BPMN engines treat the diagram as something directly executable — the same model a business analyst draws is what the engine runs.
The BPMN 2.0 spec defines well over a hundred symbols. The honest truth is that you'll use about fifteen of them in 90% of real processes. This post walks through that core, then explains how a BPMN model actually executes.
What BPMN is good at
BPMN models the flow of work over time: who or what does the next step, what triggers it, what happens if it times out, and what runs in parallel. It's the right tool when:
- A piece of work spans multiple actors — a service, a human, an external system.
- It runs over wall-clock time — minutes, hours, weeks.
- It needs to survive crashes, restarts, and retries without losing its place.
- The flow itself is a thing the business owns — onboarding, claims processing, an approval chain — and changes over time.
If your "process" is a synchronous function call that returns in milliseconds, BPMN is overkill. If your "process" reaches a step labelled "wait two business days for the customer to upload a document", BPMN earns its keep.
The core elements
A BPMN process is a directed graph of flow elements connected by sequence flows (the arrows). The flow elements come in three families.
Events — circles
Events represent something that happens. Three positions on a flow:
- Start events — how the process begins.
- End events — how it terminates.
- Intermediate events — something in the middle: wait for a message, throw a signal, raise an error.
Each event has a trigger type. The ones you'll meet in real processes:
| Trigger | What it means | |
|---|---|---|
 | None | Plain start/end with no specific trigger. |
 | Message | Wait for a named message correlated to this instance. |
 | Signal | Broadcast or wait for a named signal (one-to-many). |
 | Timer | Fire after a duration, on a date, or on a cycle. |
 | Error | Throw or catch a named error — for failure handling. |
 | Escalation | Like an error, but typically non-interrupting (the work continues while someone is alerted). |
 | Compensation | Trigger compensating actions when something has to be "undone". |
 | Terminate | An end event that immediately stops the entire process. |
Boundary events sit on the edge of a task or sub-process and intercept it — "if this task takes longer than 24 hours, fire a timer". They come in interrupting (cancel the task) and non-interrupting (run alongside) variants.
Tasks — rounded rectangles
A task is a unit of work. The task type tells the engine who or what does it:
| Task | Performed by | |
|---|---|---|
 | Service task | An automated worker — typically code (a Temporal worker, a polled HTTP worker, etc.). |
 | User task | A person, via your UI. The engine holds the token until the task is claimed and completed. |
 | Script task | A short inline expression — in QuantumBPM, written in FEEL. |
 | Business-rule task | Calls a DMN decision and writes the result back into process variables. |
  | Send task / Receive task | Send or receive a message. |
  | Manual task / Generic task | Untracked manual work / no specific semantics — useful for documenting steps the engine doesn't run. |
Gateways — diamonds
Gateways control branching and merging:
| Gateway | Behaviour | |
|---|---|---|
 | Exclusive (XOR) | One outgoing path is taken based on a condition. The default if/else of BPMN. |
 | Parallel (AND) | All outgoing paths run concurrently. On join, all incoming must arrive. |
 | Inclusive (OR) | Any number of outgoing paths can run, based on per-flow conditions. |
 | Event-based | Wait for one of several events. Whichever fires first wins. |
Three families. About fifteen meaningful elements. That covers most processes you'll actually model.
Structure: sub-processes and call activities
Real processes get nested. BPMN gives you three ways to compose:
| Element | What it is | |
|---|---|---|
 | Embedded sub-process | A group of elements drawn inline, sharing the parent's data. |
 | Call activity | An invocation of another process definition. The called process runs as its own scope and can be reused across processes. |
 | Event sub-process | Sits inside a parent scope and triggers on an event (a message, an error, a timer). Useful for "if anything goes wrong, do this". |
Sub-processes are also where you attach boundary events for scoped error handling, escalation, and compensation.
A small example

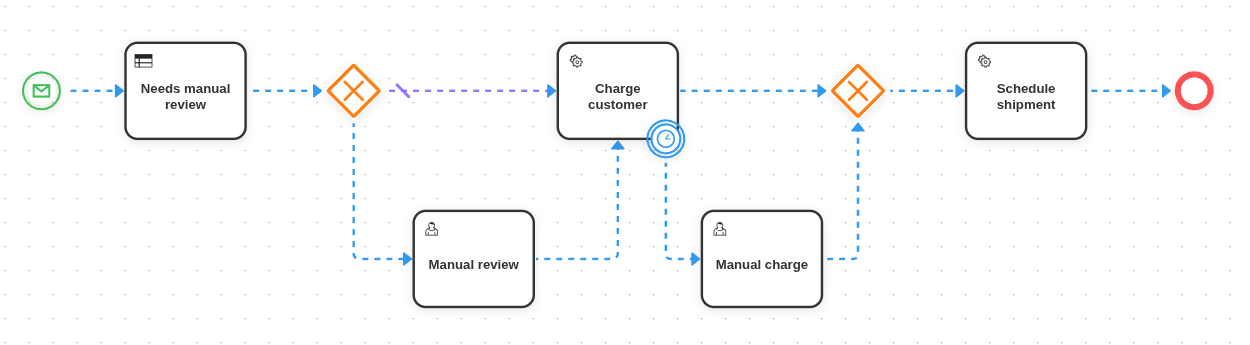

Here's the spine of an order-fulfilment process modelled in QuantumBPM:
Reading left to right:
- Start event (message: "OrderPlaced") — the process kicks off when an order arrives.
- Business-rule task — call a DMN decision to decide whether the order needs manual review.
- Exclusive gateway — branch on the decision result.
- No review needed → continue.
- Review needed → user task (a human approves or rejects), then continue.
- Service task — charge the customer.
- With a timer boundary event — if charging takes more than 5 minutes, escalate to manual charge.
- Service task — schedule shipment.
- End event.
That's an end-to-end process using start/end, a business-rule task, a service task, a user task, an exclusive gateway and a timer boundary event. Six element types — and you can already model surprisingly complex real-world flows.
What "executing a BPMN model" actually means
The visual model is just one face of BPMN. Underneath, every BPMN element has well-defined runtime semantics: what it does when a token arrives, what it produces, what it waits for. A BPMN engine is the runtime that gives those semantics a concrete implementation.
In QuantumBPM, that runtime is built on Temporal — a durable execution platform. Each process instance becomes a Temporal workflow. The practical consequences:
- Crashes are non-events. Workflow state is event-sourced, so a worker restart resumes the instance exactly where it stopped — no recovery code to write.
- Long-running is normal. A timer event waiting two weeks doesn't pin a thread or a database row in a non-obvious way. Durability is the default.
- Every step is recorded. The instance history is replayable — the same property that lets us offer a "scrub the timeline" UI for running and completed instances.
What we layer on top is the BPMN-specific machinery: the element catalog with full validation, scope trees for compensation/escalation/error bubbling, a concurrency-safe interpreter for parallel and inclusive gateways, and the operational tooling — incidents, message/signal correlation, token modification, version migration.
Where to go from here
- What is DMN? — the companion piece on decision modelling.
- BPMN vs. DMN — how the two standards complement each other.
- BPMN overview — what's supported in the QuantumBPM engine and the modeler.
- Element reference — events, tasks, gateways, structure, flows.
- External workers — how to implement service tasks in your own language.
If you want to draw and run a process end-to-end, start at the platform overview.
